Biona Headquarters - Graphic Louvers

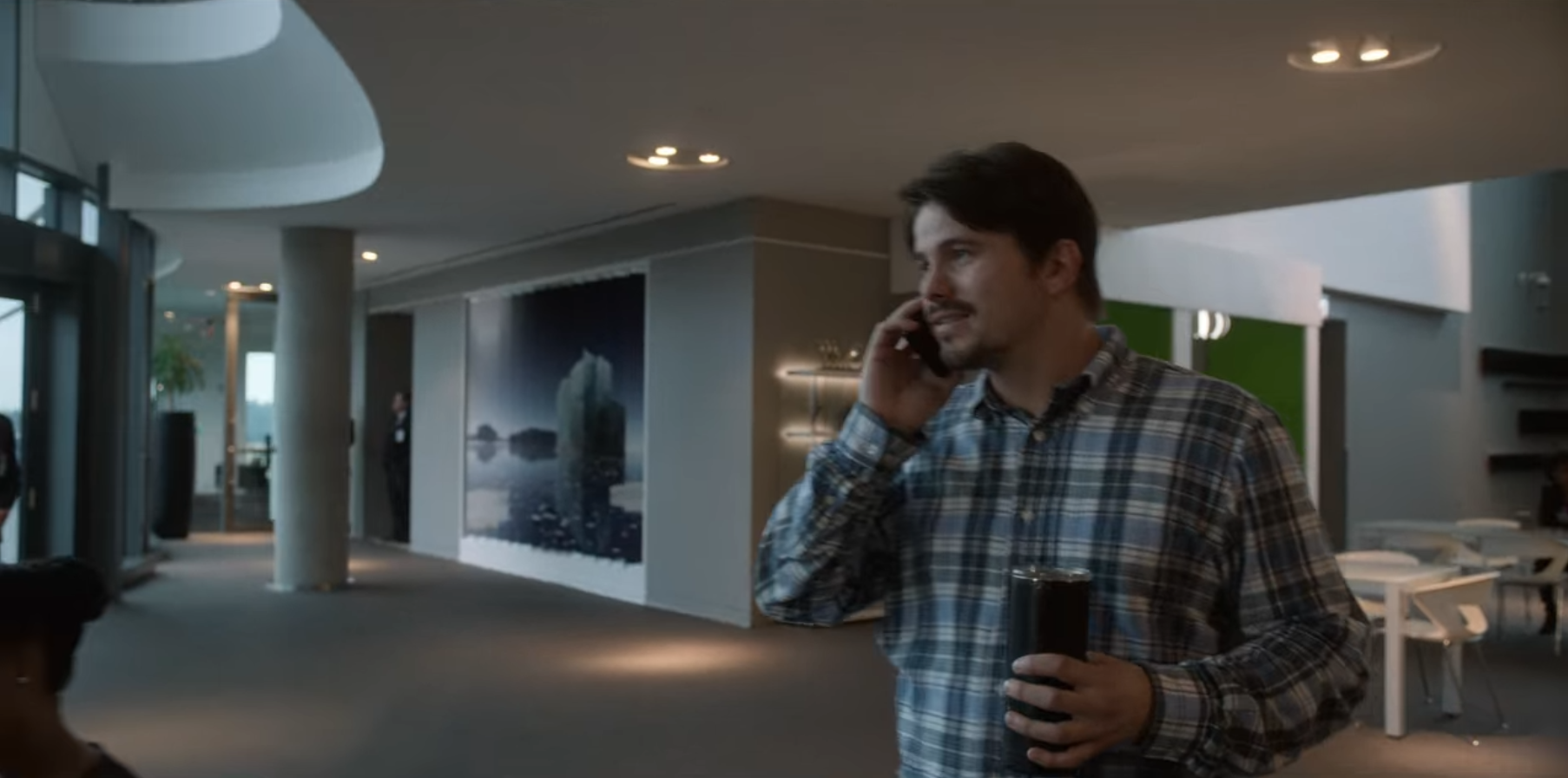

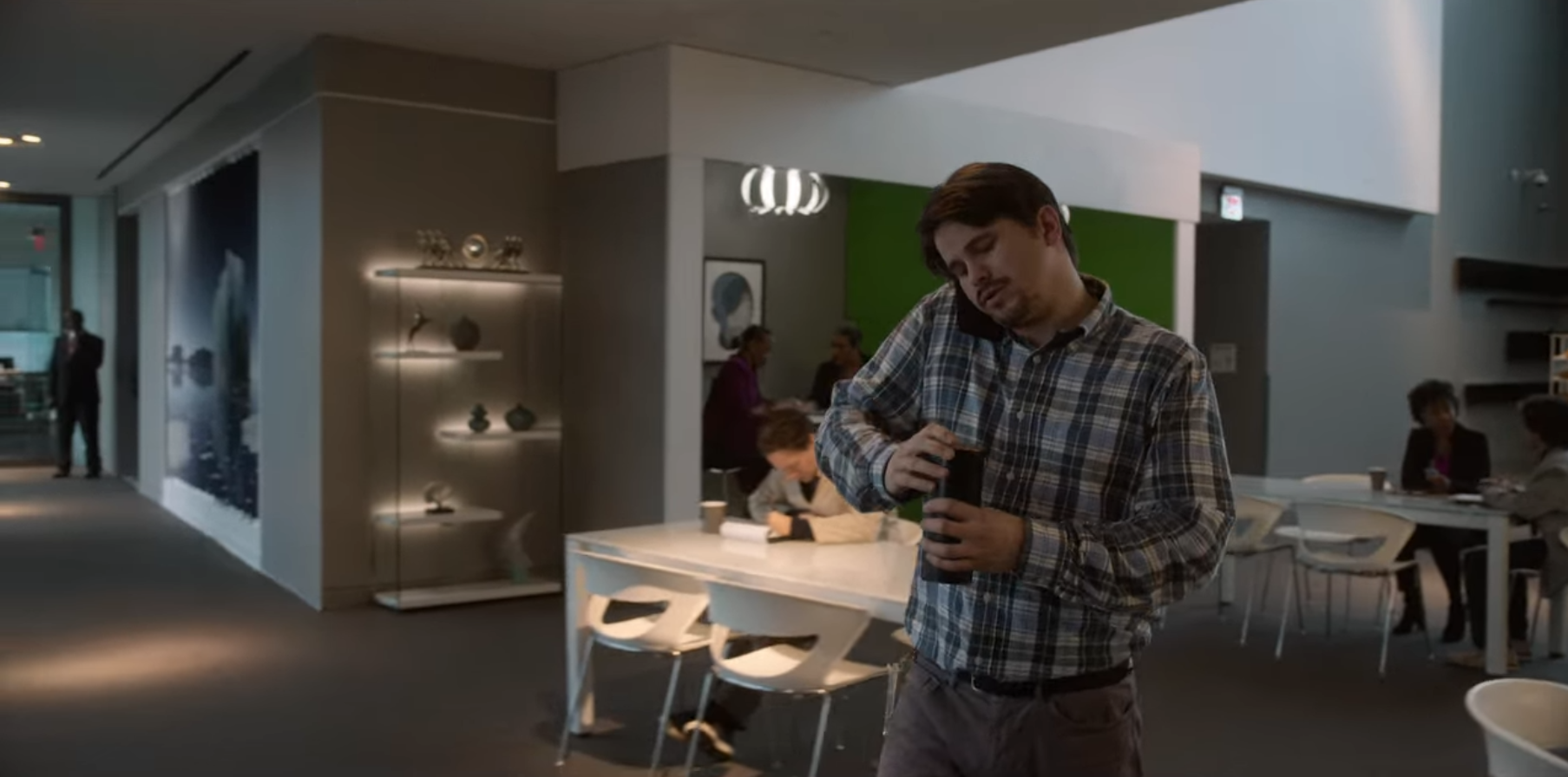

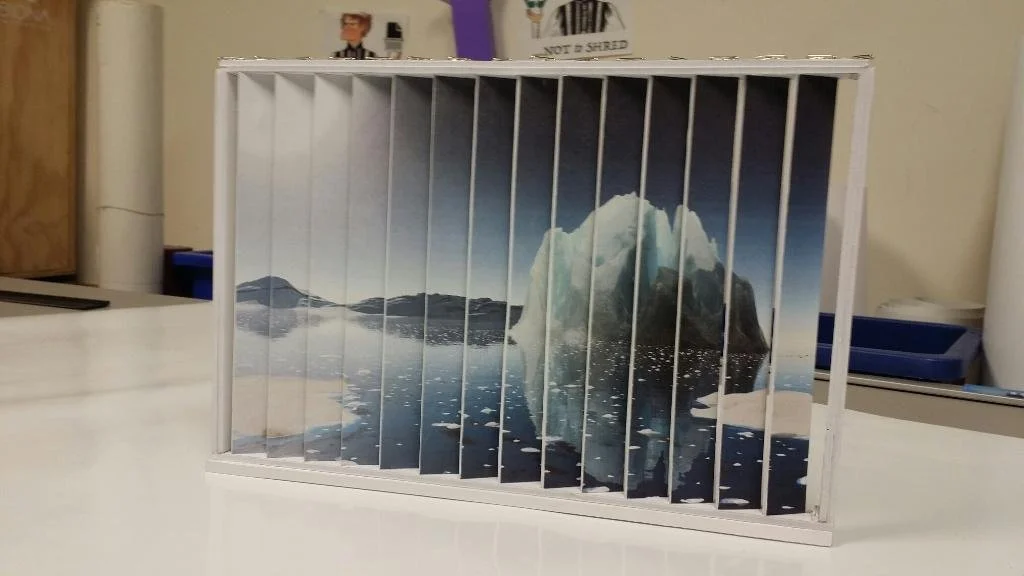

This model came about as a collaboration with the Graphic Designer for the set. This set piece was to be installed in a very prestigious building on location. I did the set design drawings for the insert piece, in order to ensure that the graphic and the louvers would work in sync and have the effect intended by the Production Designer. I created the scaled model louvers from my set design drawings and gave the dimensions to the Graphic Designer, who then sized the graphic to the requisite scale. We then gleefully cut the created miniature graphic in the desired segments, applied them to the louvers, and presented the result to the Production Designer and Art Director. The Graphic Designer and I collaborated to make sure this would work to ensure the Art department spent wisely.
